Approx. Dimensions
| Width | Length | Height | Capacity |
| 20ft / 6.1m | 40ft / 12.2m | 8ft / 2.4m | 80-133guest |
Available Color
Available Sidewall

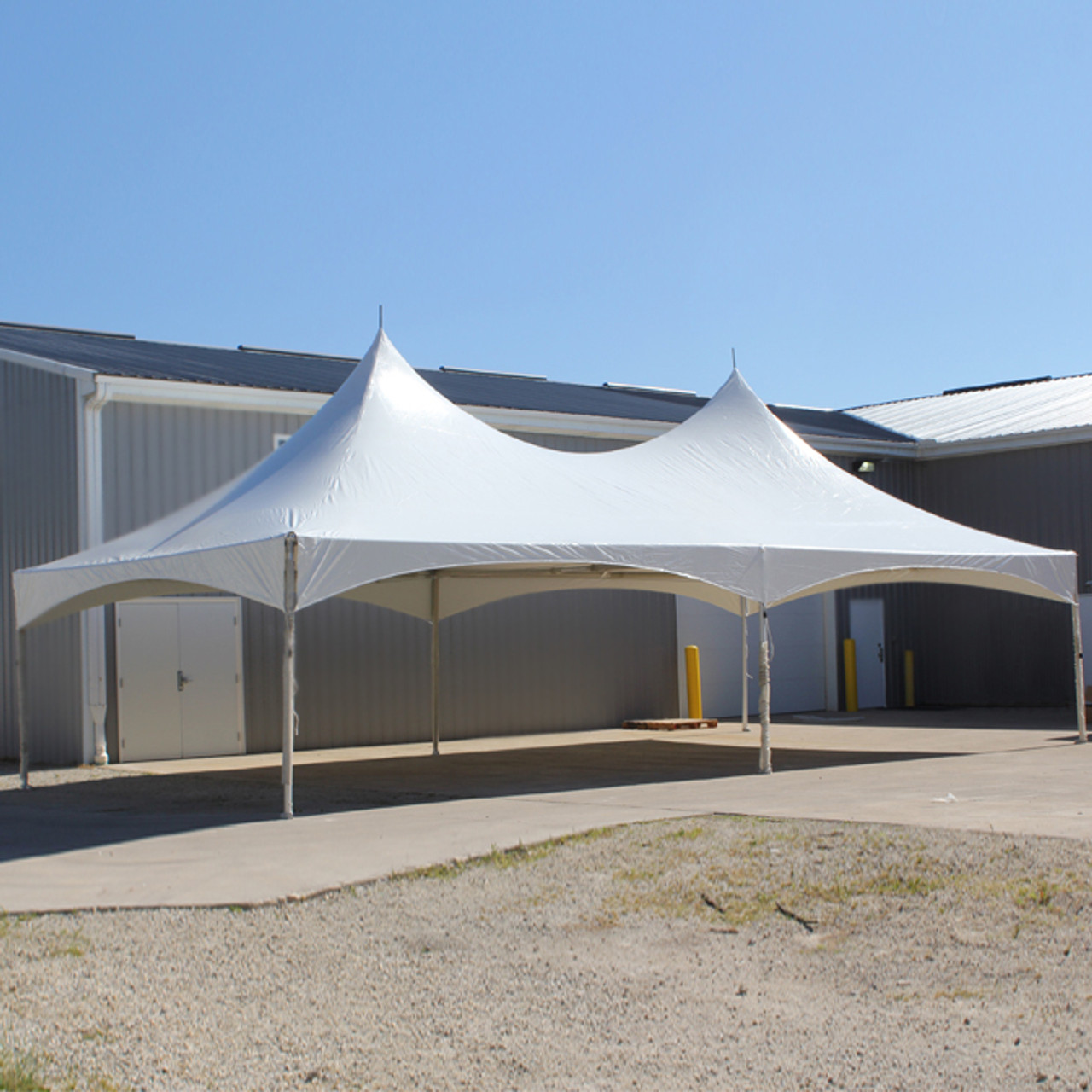

20' X 40' Pinnacle Series High Peak Frame Tent / Cross Cable Marquee, Complete
Looking for high peak frame tents for your event? You've come to the right place! This model is widely used for trade shows, promotions, food vendors, flea markets, backyard parties, graduations, and more.
Available in 7 different sizes: 10x10’, 10x20’, 15x15’, 15x30’, 20x20’, 20x30’ and 20x40’
Pinnacle High Peak Cross Cable tents are designed with a high peak tube supported by cross cables extending from each corner tube, maximizing the usable space underneath while at the same time eliminating the need for interior frames or support poles. The simple design allows for easy transportation, storage, and installation involving only two people due to the reduced amount of hardware in comparison to other frame or pole tents.
| Width | 20 ft. / 6.1m |
| Length | 40 ft. / 12.2m |
| Area | 800 ft² / 74.4 m² |
| Eave Height | 8' / 2.4m |
| Overall Height | 16'9" / 5.1m |
| Pitch | 8' 9" / 2.6m |
| Complete Weight | 497 Lbs. / 225.4 Kg. |
| Series / Brand | Pinnacle |
| Class | Cross Cable |
| Center Pole | No |
| Style / Shape | High Peak |
| Expandable | No |
| Custom Printing Available | Yes |
| Fabric Material | PVC Coated Polyester |
| Fabric Material Weight | 16 oz. / yd2 / 540 gsm |
| Fabric Translucency | Blockout |
| Water Repellency | Waterproof |
| Flame Resistant | NFPA-701/CPAI-84/ASTM-D6413/CANULC-S109/DIN4102-B1 |
| UV Resistant | Yes |
| Mold and Mildew Resistant | Yes |
| Frame / Pole Material | Aluminum 6061/T6 |
| Longest Component | 9'3" / 2.8m |
| Persons required for setup | 2-3 |

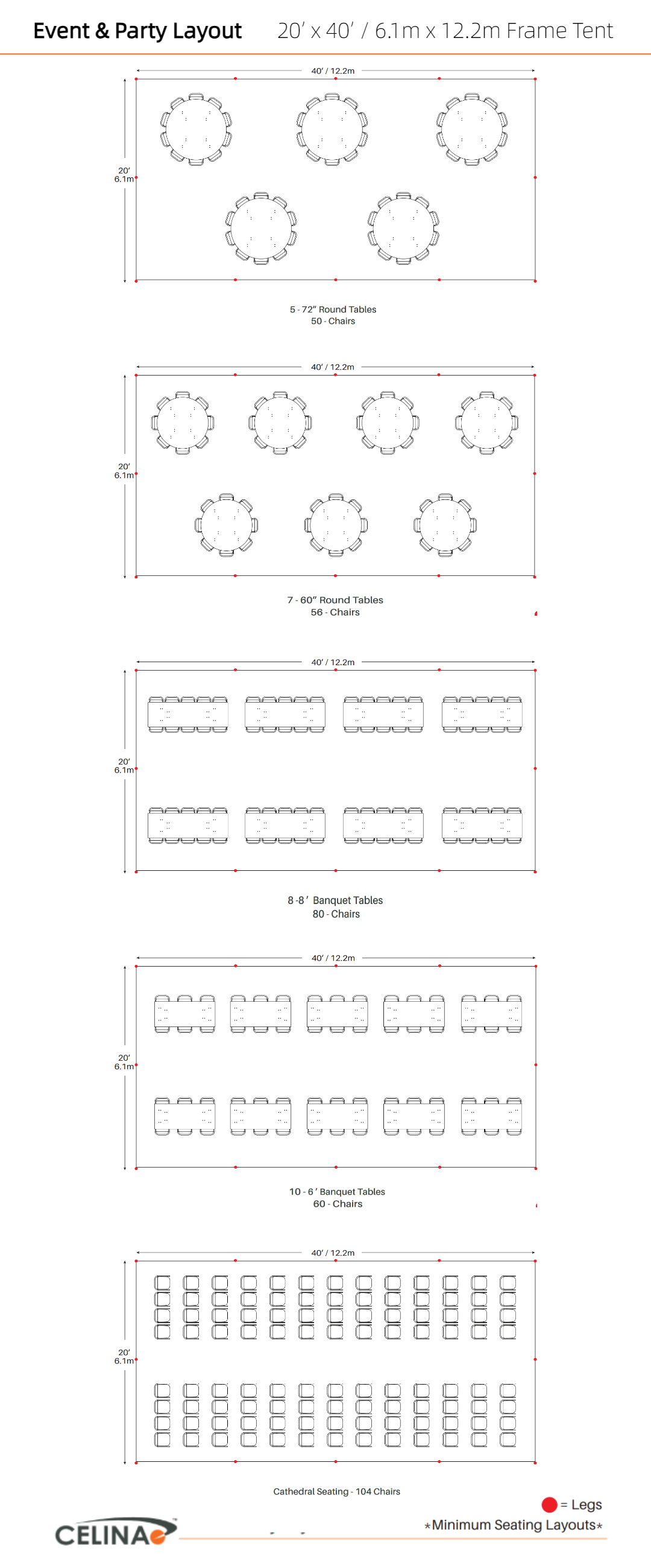

| Occupancy | 80 Sit Down Dinner - 133 Cathedral Seating |
