30' X 75' Classic Frame Tent / West Coast Style Frame, sectional tent top, Complete


Approx. Dimensions

Width Length Height Capacity
30ft / 9.1m 75ft / 22.9m 8ft / 2.4m 225-375guest

Available Color

未标题-30
微信图片_20240223103903
微信图片_20240223103906
微信图片_20240223103913
undefined
undefined
微信图片_20240223103858

Available Sidewall


  • Description
  • Specification
  • Layout
  • More Products

Description

30' X 75' Classic Frame Tent / West Coast Style Frame, Complete

The Classic Series Frame tent is a tent which utilizes a simple frame to support the tent top, maximizing the usable space available underneath the tent. All Classic Series Frame tents use West Coast Style frames and fittings, making them interchangeable with all other frames and fittings in this style. Frame tents need to be staked to the ground or otherwise anchored for maximum stability.

Available size:

Width:8’ 10’ 15’ 20’ 30’ 40’

Length:8’-unlimited

Specification

Width 30 ft. / 9.1m
Length 75 ft. / 22.9m
Area 2250 ft² / 208.4 m²
Eave Height 8' / 2.4m
Overall Height 15'6" / 4.7m
Pitch 7'6" / 2.3m
Complete Weight 1730 Lbs. / 785 Kg.
Series / Brand Classic
Class Frame
Center Pole No
Style / Shape Traditional
Expandable Yes
Custom Printing Available Yes
Fabric Material PVC Coated Polyester
Fabric Material Weight 16 oz. / yd2 / 540 gsm
Fabric Translucency Blockout
Water Repellency Waterproof
Flame Resistant NFPA-701/CPAI-84/ASTM-D6413/CANULC-S109/DIN4102-B1
UV Resistant Yes
Mold and Mildew Resistant Yes
Frame / Pole Material Aluminum 6061/T6
Longest Component 21'10.5" / 6.7m
Persons required for setup 4-7
Occupancy 225 Sit Down Dinner - 375 Cathedral Seating

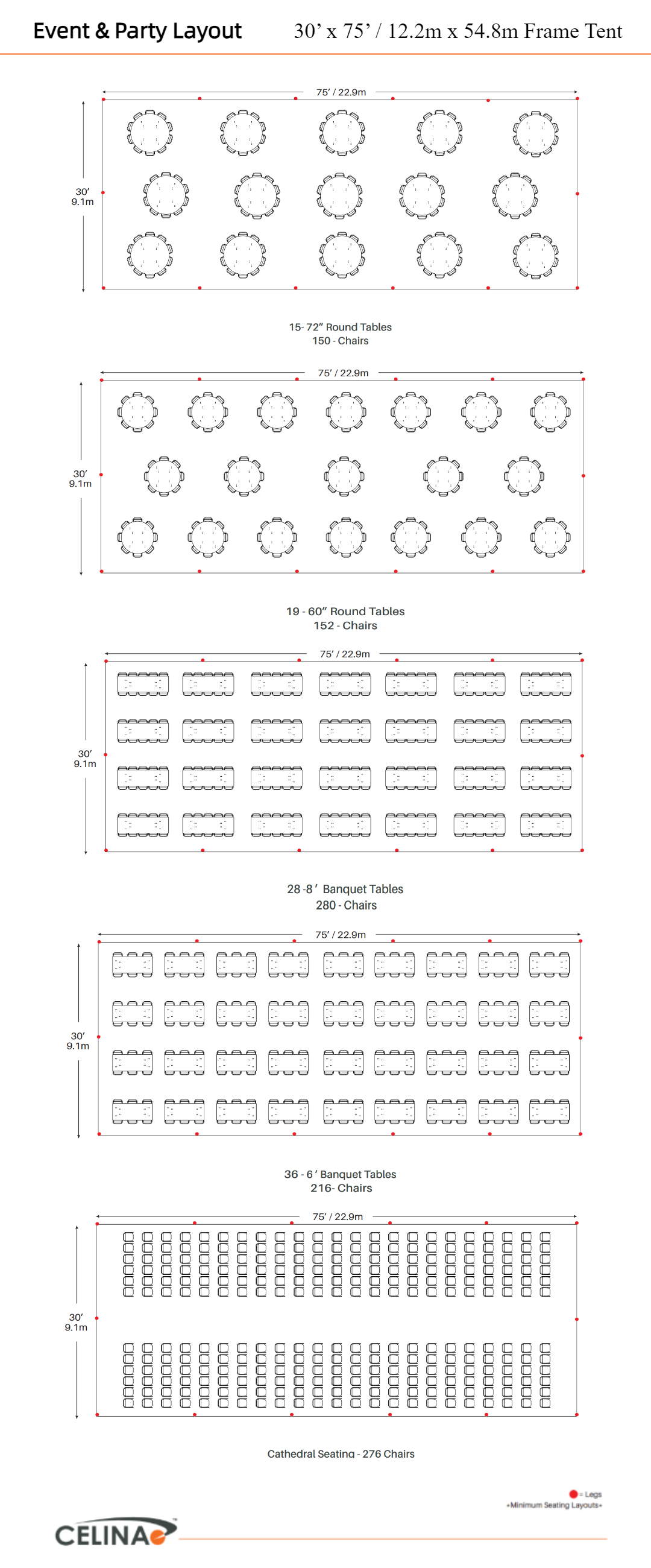

Layout

3075CFlayout
