Approx. Dimensions
| Width | Length | Height | Capacity |
| 30ft / 9.1m | 45ft / 13.7m | 8ft / 2.4m | 135-225guest |
Available Color
Available Sidewall

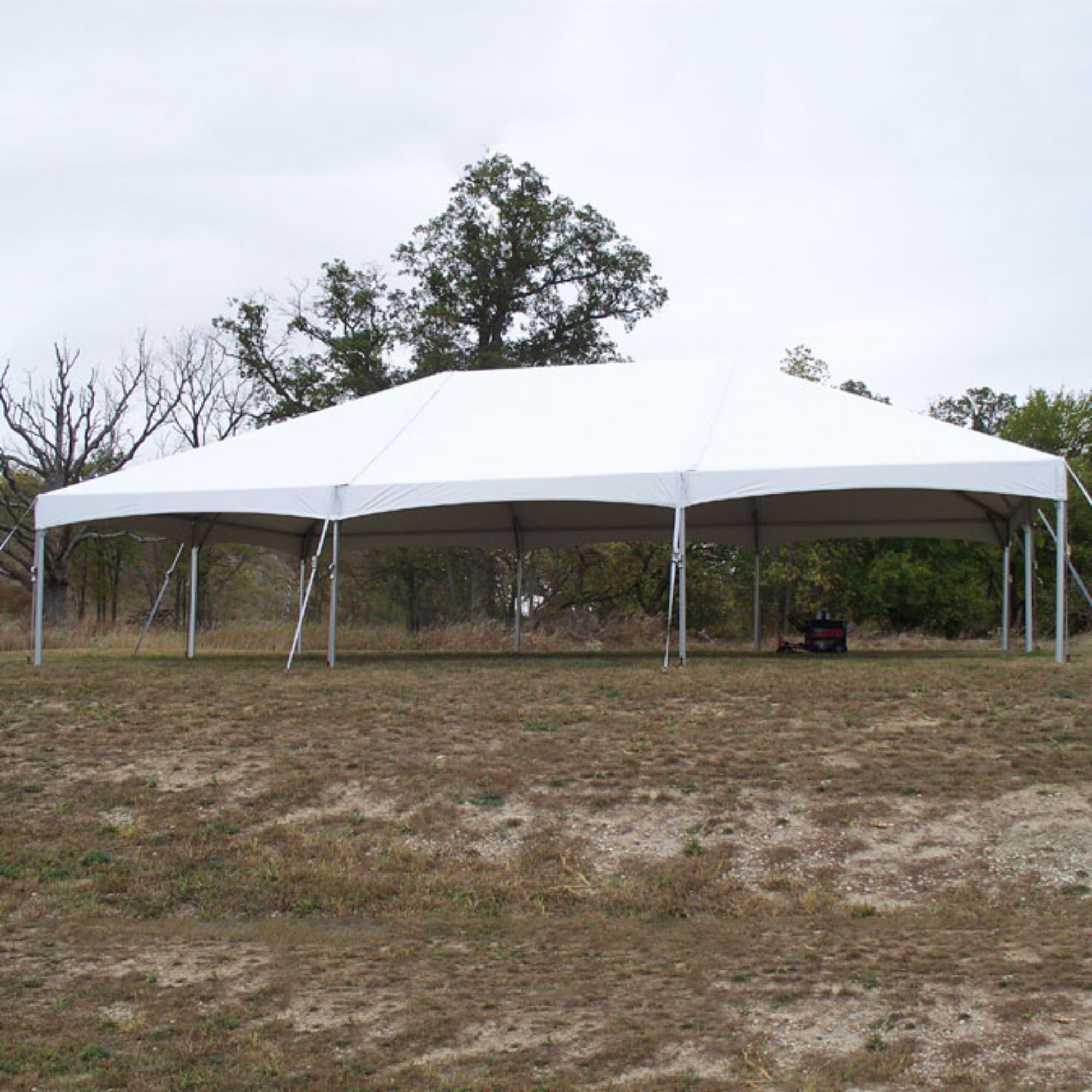

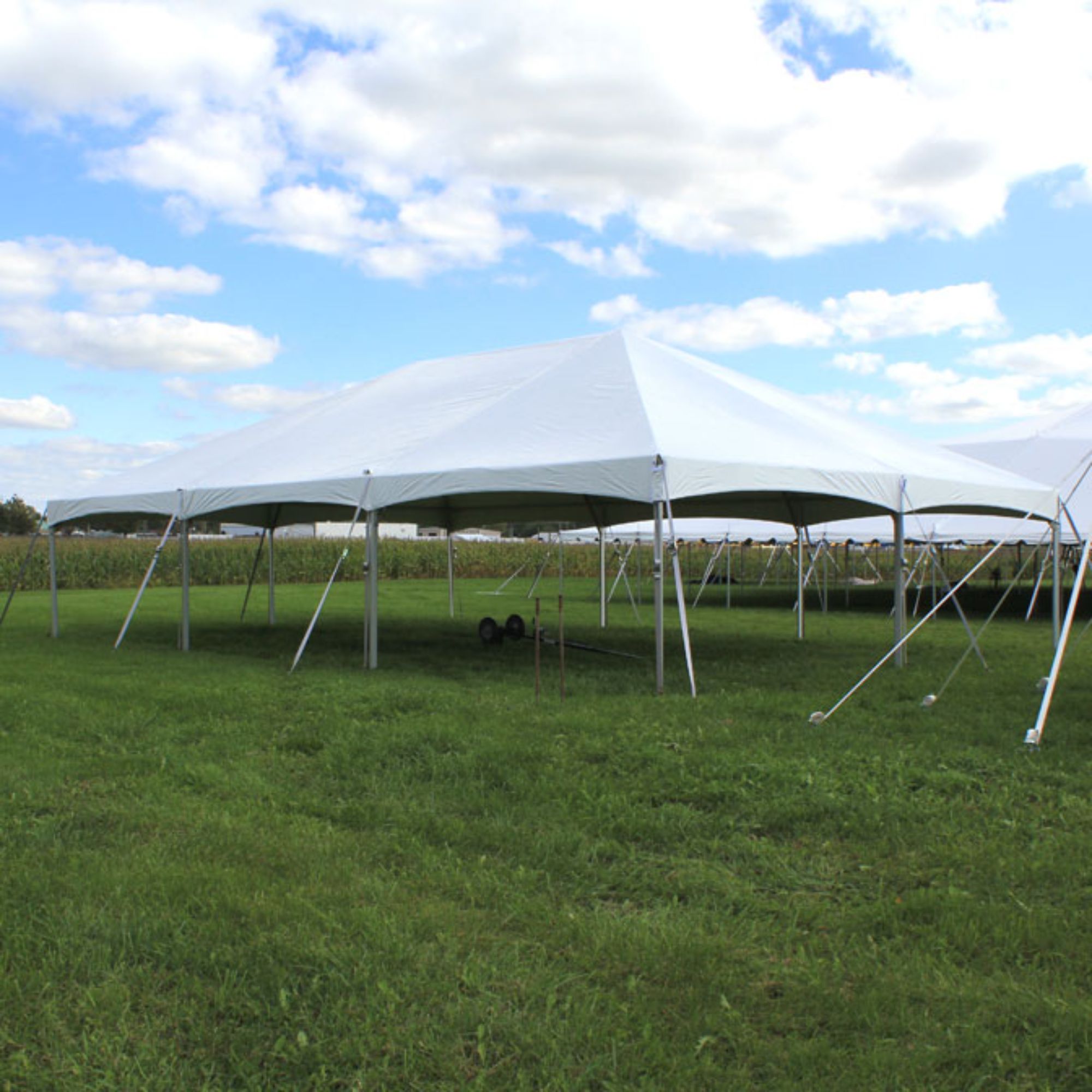

30' X 45' Master Frame Tent / sectional tent top, Complete
The Master Series Frame Tent utilizes the West Coast Style Frame and fittings for compatibility between tents. The design of the Master frame tent is meant to smooth and tighten the traditional look of frame tents by using a tensioned valance, or catenary curve, as opposed to clips or buckles. Which allows the Master Series Frame tent to use less hardware, leading to faster and easier installations.
Available size:
Width: 10' 12' 15’ 20’ 30’ 40’
Length:10’-unlimited
| Width | 30 ft. / 9.1m |
| Length | 45 ft. / 13.7m |
| Area | 1350 ft² / 124.7 m² |
| Eave Height | 8' / 2.4m |
| Overall Height | 15'6" / 4.7m |
| Pitch | 7'6" / 2.3m |
| Complete Weight | 1019 Lbs. / 462 Kg. |
| Series / Brand | Master |
| Class | Frame |
| Center Pole | No |
| Style / Shape | Traditional |
| Expandable | Yes |
| Custom Printing Available | Yes |
| Fabric Material | PVC Coated Polyester |
| Fabric Material Weight | 16 oz. / yd2 / 540 gsm |
| Fabric Translucency | Blockout |
| Water Repellency | Waterproof |
| Flame Resistant | NFPA-701/CPAI-84/ASTM-D6413/CANULC-S109/DIN4102-B1 |
| UV Resistant | Yes |
| Mold and Mildew Resistant | Yes |
| Frame / Pole Material | Aluminum 6061/T6 |
| Longest Component | 21'10.5" / 6.7m |
| Persons required for setup | 3-6 |

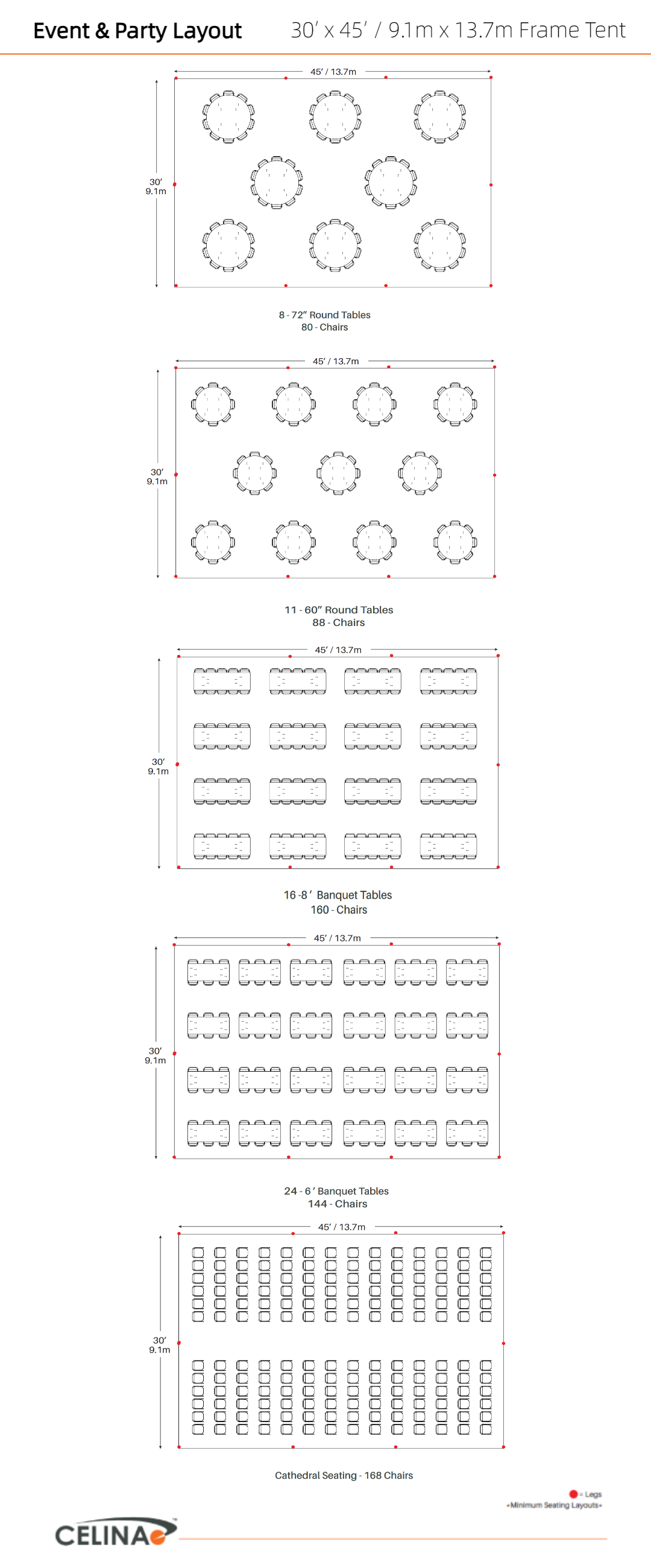

| Occupancy | 135 Sit Down Dinner - 225 Cathedral Seating |
