Approx. Dimensions
| Width | Length | Height | Capacity |
| 30ft / 9.1m | 40ft / 13.7m | 8ft / 2.4m | 120-200guest |
Available Color
Available Sidewall

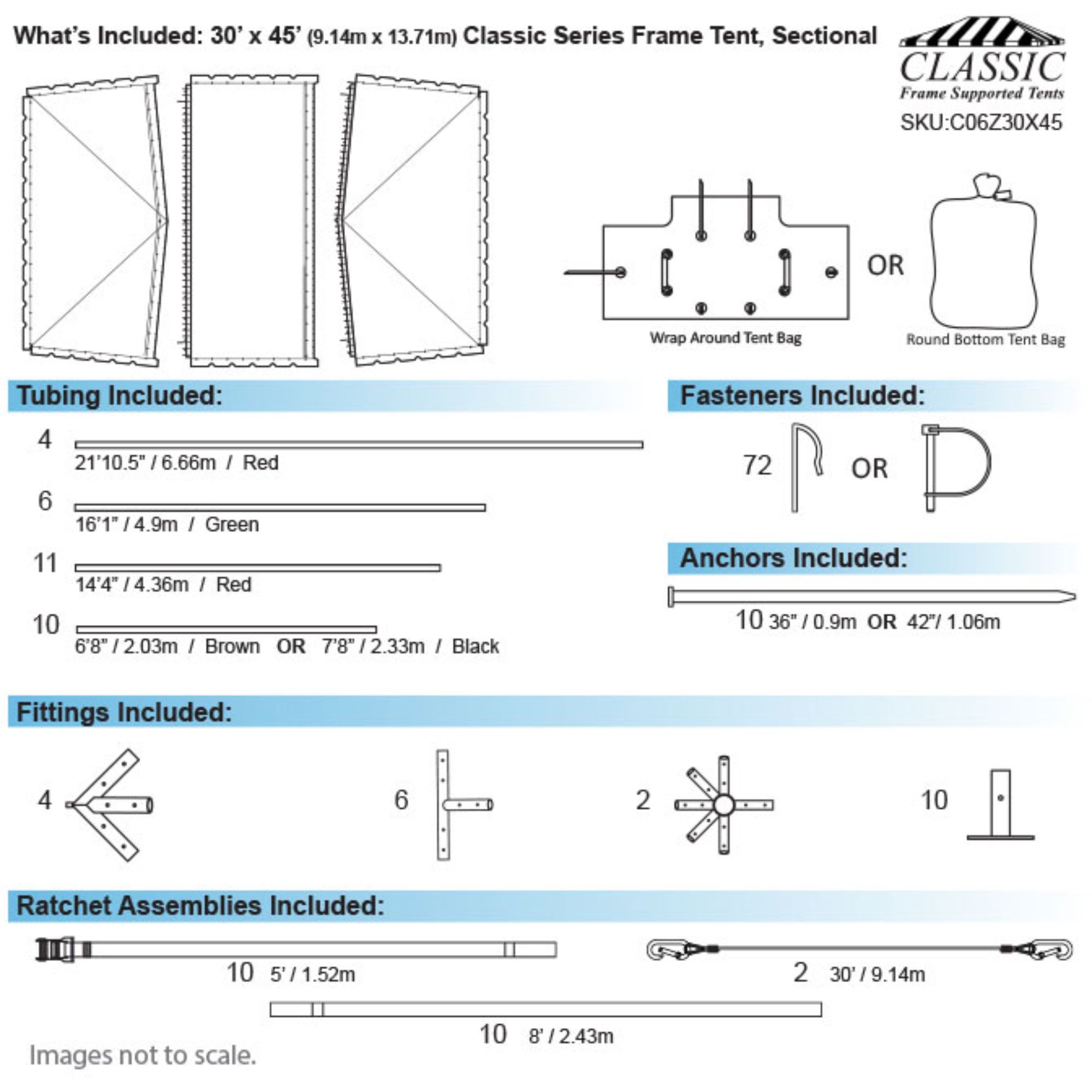

30' X 45 ' Classic Frame Tent / West Coast Style Frame, sectional tent top, Complete
The Classic Series Frame tent is a tent which utilizes a simple frame to support the tent top, maximizing the usable space available underneath the tent. All Classic Series Frame tents use West Coast Style frames and fittings, making them interchangeable with all other frames and fittings in this style. Frame tents need to be staked to the ground or otherwise anchored for maximum stability.
Available size:
Width:8’ 10’ 15’ 20’ 30’ 40’
Length:8’-unlimited
| Width | 30 ft. / 9.1m |
| Length | 45 ft. / 13.7m |
| Area | 1350 ft² / 124.7 m² |
| Eave Height | 8' / 2.4m |
| Overall Height | 15'6" / 4.7m |
| Pitch | 7'6" / 2.3m |
| Complete Weight | 1173 Lbs. / 532 Kg. |
| Series / Brand | Classic |
| Class | Frame |
| Center Pole | No |
| Style / Shape | Traditional |
| Expandable | No |
| Custom Printing Available | Yes |
| Fabric Material | PVC Coated Polyester |
| Fabric Material Weight | 16 oz. / yd2 / 540 gsm |
| Fabric Translucency | Blockout |
| Water Repellency | Waterproof |
| Flame Resistant | NFPA-701/CPAI-84/ASTM-D6413/CANULC-S109/DIN4102-B1 |
| UV Resistant | Yes |
| Mold and Mildew Resistant | Yes |
| Frame / Pole Material | Aluminum 6061/T6 |
| Longest Component | 21'10.5" / 6.7m |
| Persons required for setup | 3-6 |
| Occupancy | 135 Sit Down Dinner - 225 Cathedral Seating |
