30' X 40' Classic Frame Tent / West Coast Style Frame, one piece tent top, Complete


Approx. Dimensions

Width Length Height Capacity
30ft / 9.1m 40ft / 12.2m 8ft / 2.4m 120-200guest

Available Color

未标题-30
微信图片_20240223103903
微信图片_20240223103906
微信图片_20240223103913
undefined
undefined
微信图片_20240223103858

Available Sidewall


  • Description
  • Specification
  • Layout
  • More Products

Description

30' X 40' Classic Frame Tent / West Coast Style Frame, one piece tent top, Complete

The Classic Series Frame tent is a tent which utilizes a simple frame to support the tent top, maximizing the usable space available underneath the tent. All Classic Series Frame tents use West Coast Style frames and fittings, making them interchangeable with all other frames and fittings in this style. Frame tents need to be staked to the ground or otherwise anchored for maximum stability.

Available size:

Width:8’ 10’ 15’ 20’ 30’ 40’

Length:8’-unlimited

Specification

Width 30 ft. / 9.1m
Length 40 ft. / 12.2m
Area 1200 ft² / 111.0 m²
Eave Height 8' / 2.4m
Overall Height 15'6" / 4.7m
Pitch 7'6" / 2.3m
Complete Weight 1123 Lbs. / 509 Kg.
Series / Brand Classic
Class Frame
Center Pole No
Style / Shape Traditional
Expandable No
Custom Printing Available Yes
Fabric Material PVC Coated Polyester
Fabric Material Weight 16 oz. / yd2 / 540 gsm
Fabric Translucency Blockout
Water Repellency Waterproof
Flame Resistant NFPA-701/CPAI-84/ASTM-D6413/CANULC-S109/DIN4102-B1
UV Resistant Yes
Mold and Mildew Resistant Yes
Frame / Pole Material Aluminum 6061/T6
Longest Component 21'10.5" / 6.7m
Persons required for setup 3-5
Occupancy 120 Sit Down Dinner - 200 Cathedral Seating

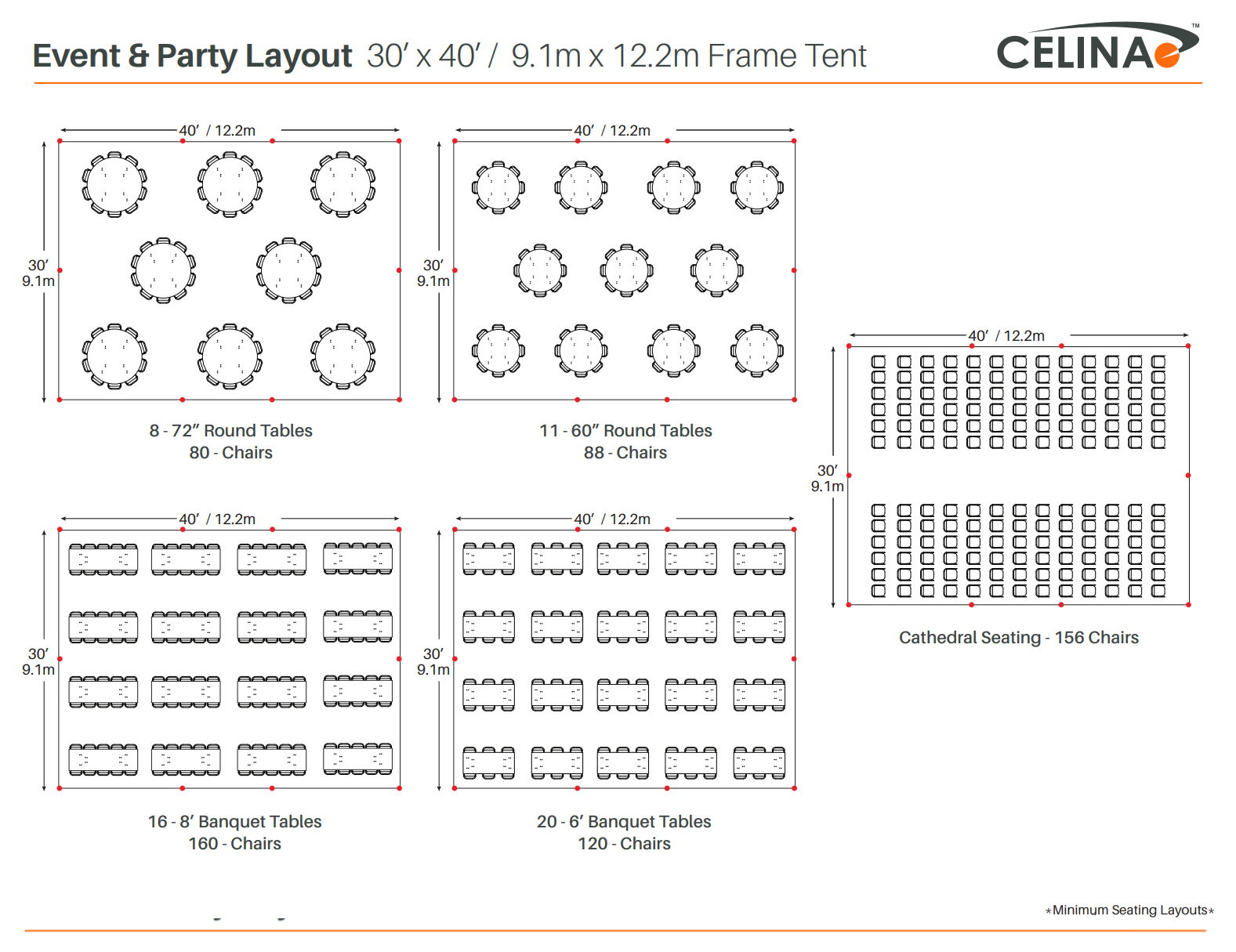

Layout

3040CFlayout
