Approx. Dimensions
| Width | Length | Height | Capacity |
| 20ft / 6.1m | 60ft / 18.3m | 8ft / 2.4m | 120-200guest |
Available Color
Available Sidewall
20' X 60' Gable Frame Tent / one piece tent top, Complete
The Marquee Gable Frame tent capitalizes on the Classic Frame tent design by allowing for two gable ends; because of the two vertical gable ends the Marquee Gable Frame tent can be butted up against other tents or permanent structures effortlessly. The rest of the structure mimics the same basic frame design, which allows for the same ease of installation.
Available size:
Width: 8’ 10’ 12’ 15’ 20’ 30’ 40’
Length:8’-unlimited
| Width | 20 ft. / 6.1m |
| Length | 60 ft. / 18.3m |
| Area | 1200 ft / 111.6 m² |
| Eave Height | 8' / 2.4m |
| Overall Height | 13' / 4.06m |
| Pitch | 5' / 1.5m |
| Complete Weight | 1040 Lbs. / 472 Kg. |
| Series / Brand | Classic |
| Class | Frame |
| Center Pole | No |
| Style / Shape | Gable |
| Expandable | No |
| Custom Printing Available | Yes |
| Fabric Material | PVC Coated Polyester |
| Fabric Material Weight | 16 oz. / yd2 / 540 gsm |
| Fabric Translucency | Blockout |
| Water Repellency | Waterproof |
| Flame Resistant | NFPA-701/CPAI-84/ASTM-D6413/CANULC-S109/DIN4102-B1 |
| UV Resistant | Yes |
| Mold and Mildew Resistant | Yes |
| Frame / Pole Material | Aluminum 6061/T6 |
| Longest Component | 10'6" / 3.2m |
| Persons required for setup | 3-6 |

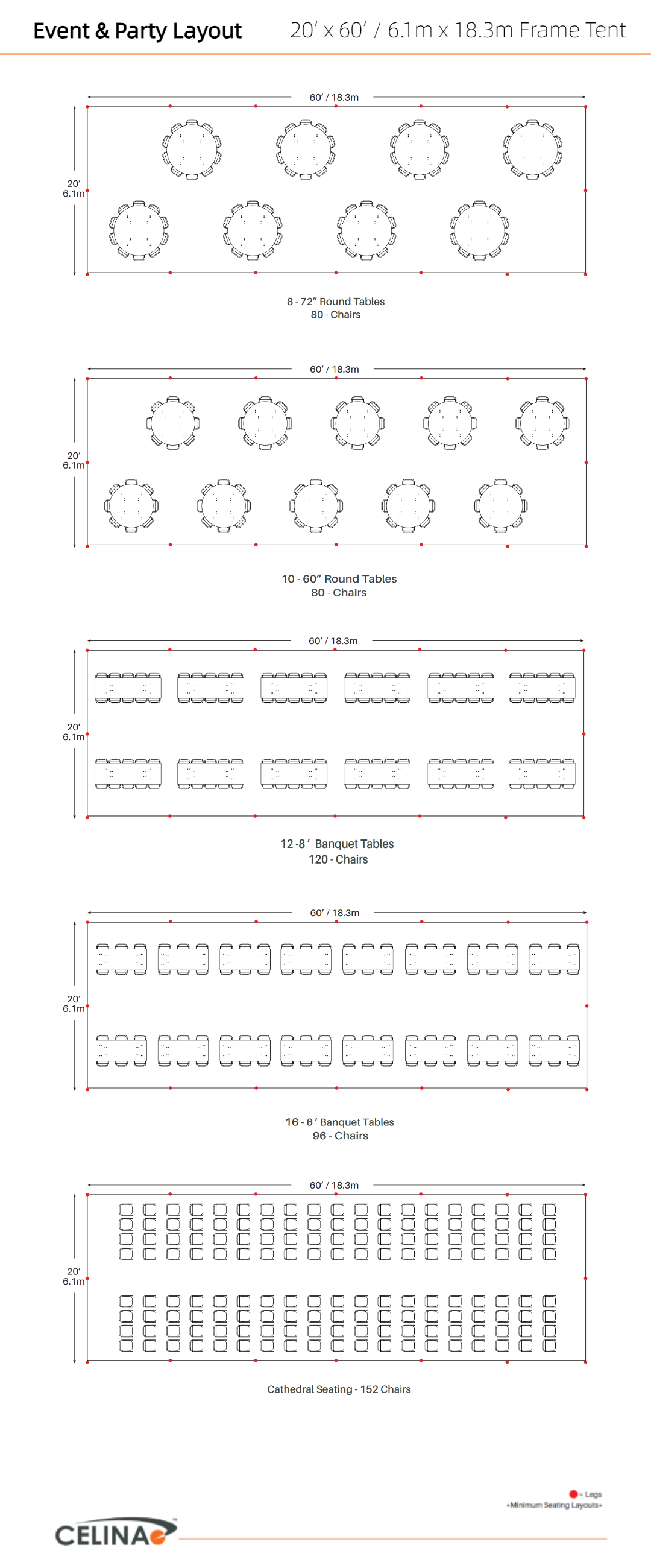

| Occupancy | 120 Sit Down Dinner - 200 Cathedral Seating |
