Approx. Dimensions
| Width | Length | Height | Capacity |
| 20ft / 6.1m | 40ft / 12.2m | 8ft / 2.4m | 80-133guest |
Available Color
Available Sidewall

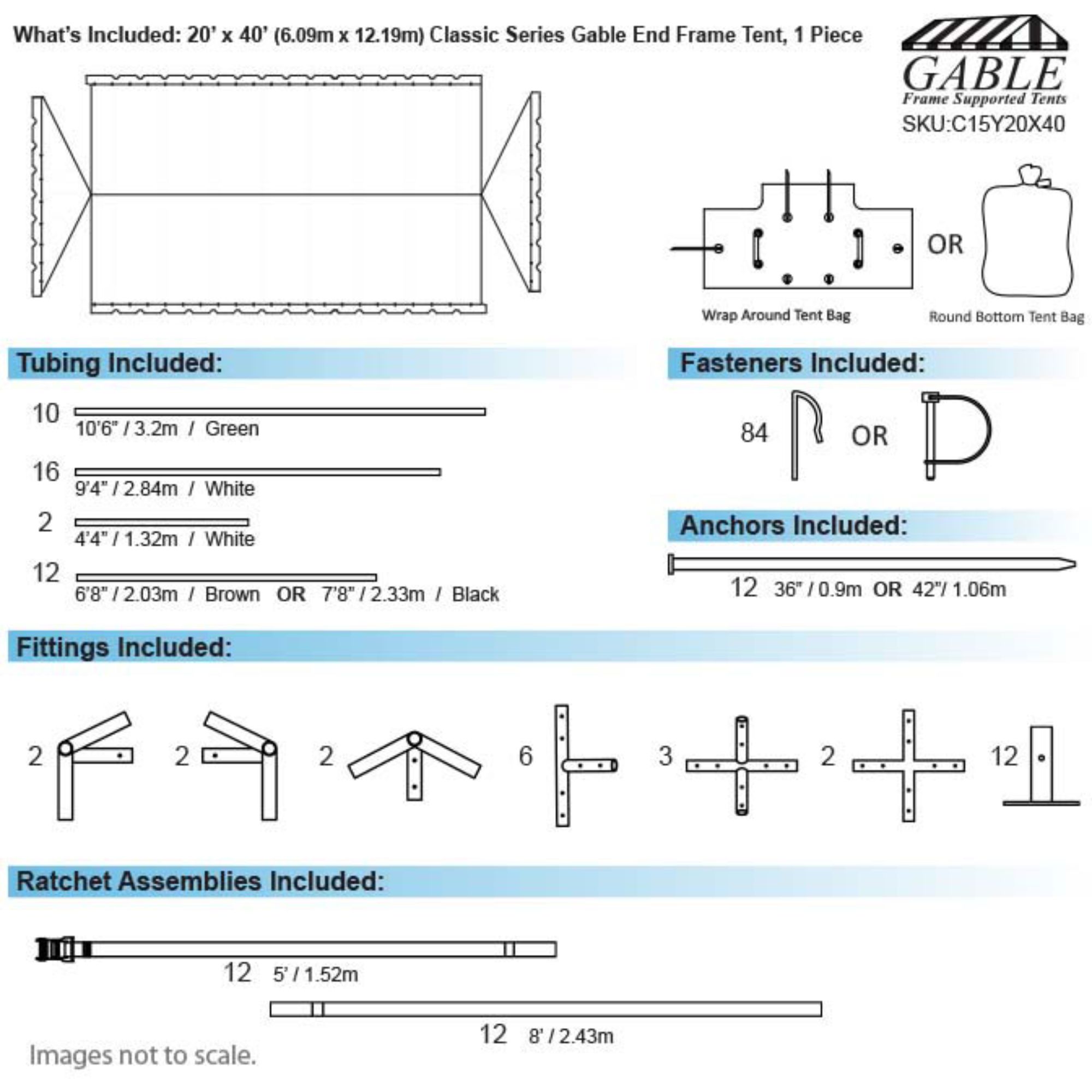

20' X 40' Gable Frame Tent / one piece tent top, Complete
The Marquee Gable Frame tent capitalizes on the Classic Frame tent design by allowing for two gable ends; because of the two vertical gable ends the Marquee Gable Frame tent can be butted up against other tents or permanent structures effortlessly. The rest of the structure mimics the same basic frame design, which allows for the same ease of installation.
Available size:
Width: 8’ 10’ 12’ 15’ 20’ 30’ 40’
Length:8’-unlimited
| Width | 20 ft. / 6.1m |
| Length | 40 ft. / 12.2m |
| Area | 800 ft / 74.4 m² |
| Eave Height | 8' / 2.4m |
| Overall Height | 13' / 4.06m |
| Pitch | 5' / 1.5m |
| Complete Weight | 758 Lbs. / 344 Kg. |
| Series / Brand | Classic |
| Class | Frame |
| Center Pole | No |
| Style / Shape | Gable |
| Expandable | No |
| Custom Printing Available | Yes |
| Fabric Material | PVC Coated Polyester |
| Fabric Material Weight | 16 oz. / yd2 / 540 gsm |
| Fabric Translucency | Blockout |
| Water Repellency | Waterproof |
| Flame Resistant | NFPA-701/CPAI-84/ASTM-D6413/CANULC-S109/DIN4102-B1 |
| UV Resistant | Yes |
| Mold and Mildew Resistant | Yes |
| Frame / Pole Material | Aluminum 6061/T6 |
| Longest Component | 10'6" / 3.2m |
| Persons required for setup | 2-5 |
| Occupancy | 80 Sit Down Dinner - 133 Cathedral Seating |
