Description

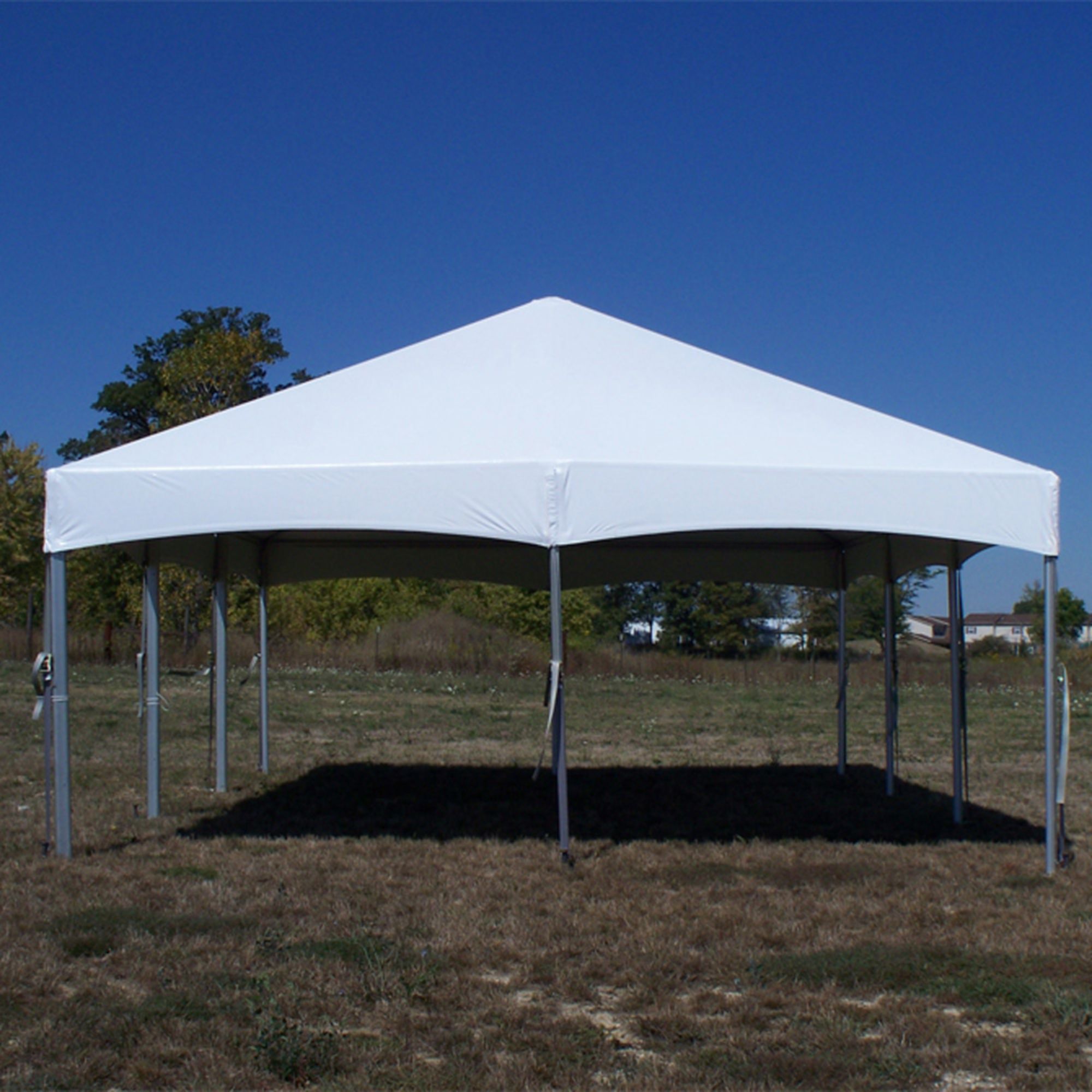

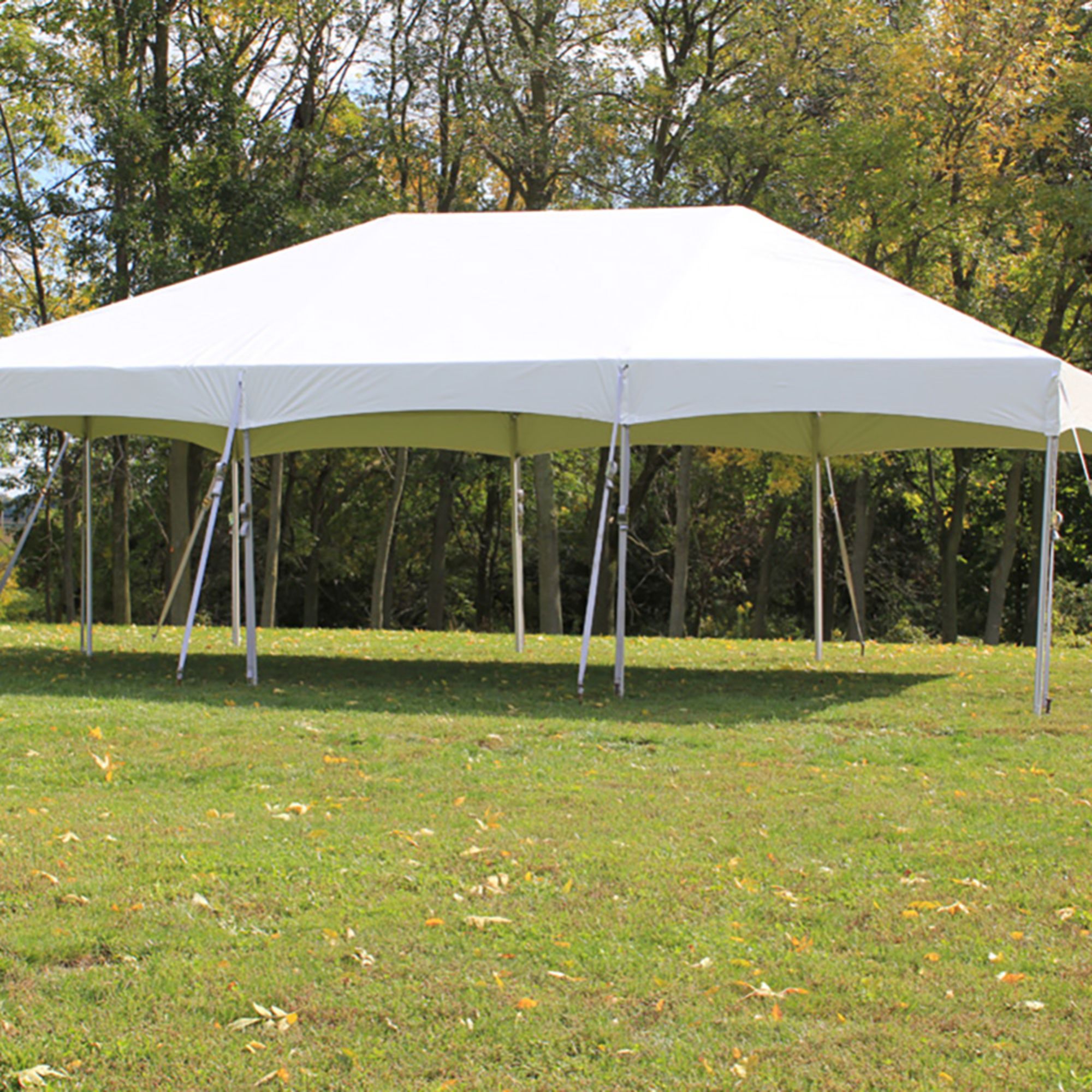

20' X 30' Master Frame Tent / one piece tent top, Complete

The Master Series Frame Tent utilizes the West Coast Style Frame and fittings for compatibility between tents. The design of the Master frame tent is meant to smooth and tighten the traditional look of frame tents by using a tensioned valance, or catenary curve, as opposed to clips or buckles. Which allows the Master Series Frame tent to use less hardware, leading to faster and easier installations.

Available size:

Width: 10' 12' 15’  20’  30’  40’

Length:10’-unlimited

Specification

Width 20 ft. / 6.1m
Length 30 ft. / 9.1m
Area 600 ft² / 55.5m²
Eave Height 8' / 2.4m
Overall Height 13'/ 4m
Pitch 5' / 1.5m
Complete Weight 699 Lbs. / 317 Kg.
Series / Brand Master
Class Frame
Center Pole No
Style / Shape Traditional
Expandable No
Custom Printing Available Yes
Fabric Material PVC Coated Polyester
Fabric Material Weight 16 oz. / yd2 / 540 gsm
Fabric Translucency Blockout
Water Repellency Waterproof
Flame Resistant NFPA-701/CPAI-84/ASTM-D6413/CANULC-S109/DIN4102-B1
UV Resistant Yes
Mold and Mildew Resistant Yes
Frame / Pole Material Aluminum 6061/T6
Longest Component 14'4" / 4.4m
Persons required for setup 2-5
Occupancy 60 Sit Down Dinner - 100 Cathedral Seating

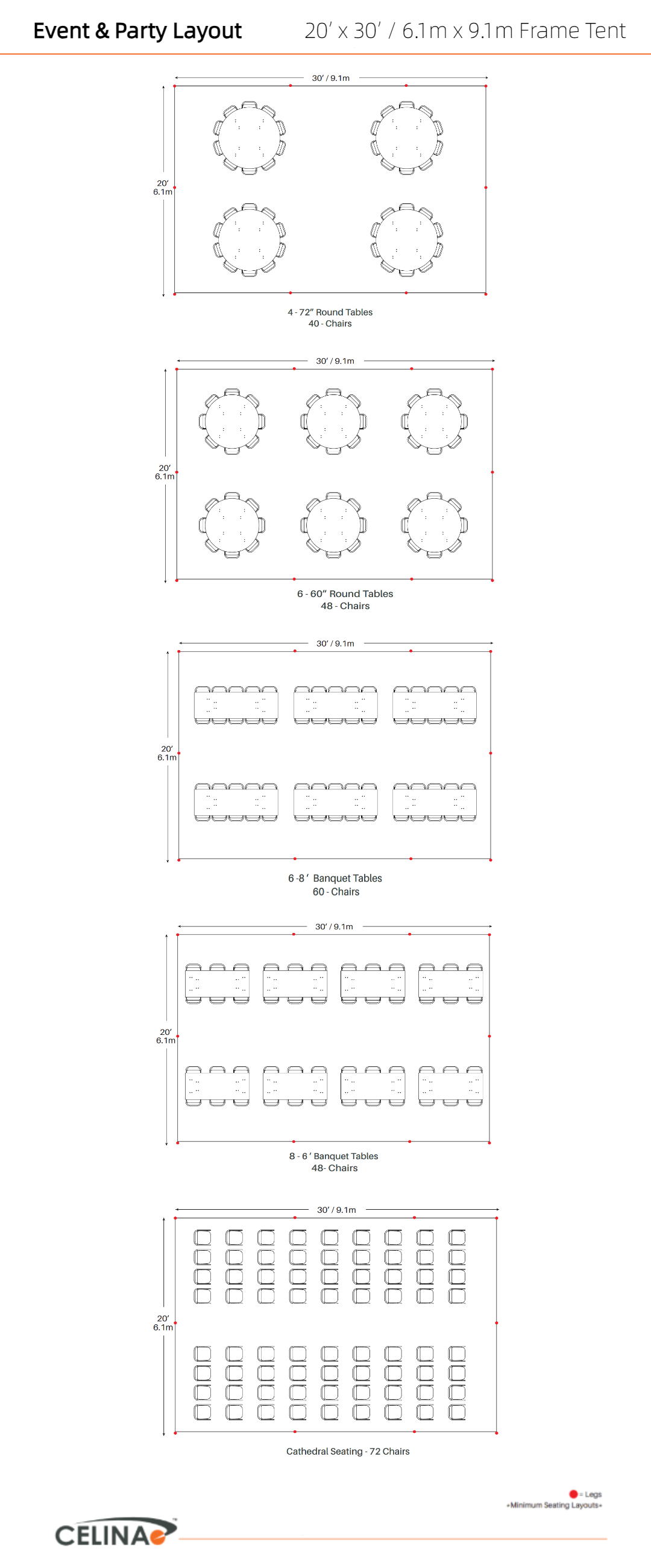

Layout

2030MFlayout
