Approx. Dimensions
| Width | Length | Height | Capacity |
| 20ft / 6.1m | 30ft / 9.1m | 8ft / 2.4m | 60-100guest |
Available Color
Available Sidewall

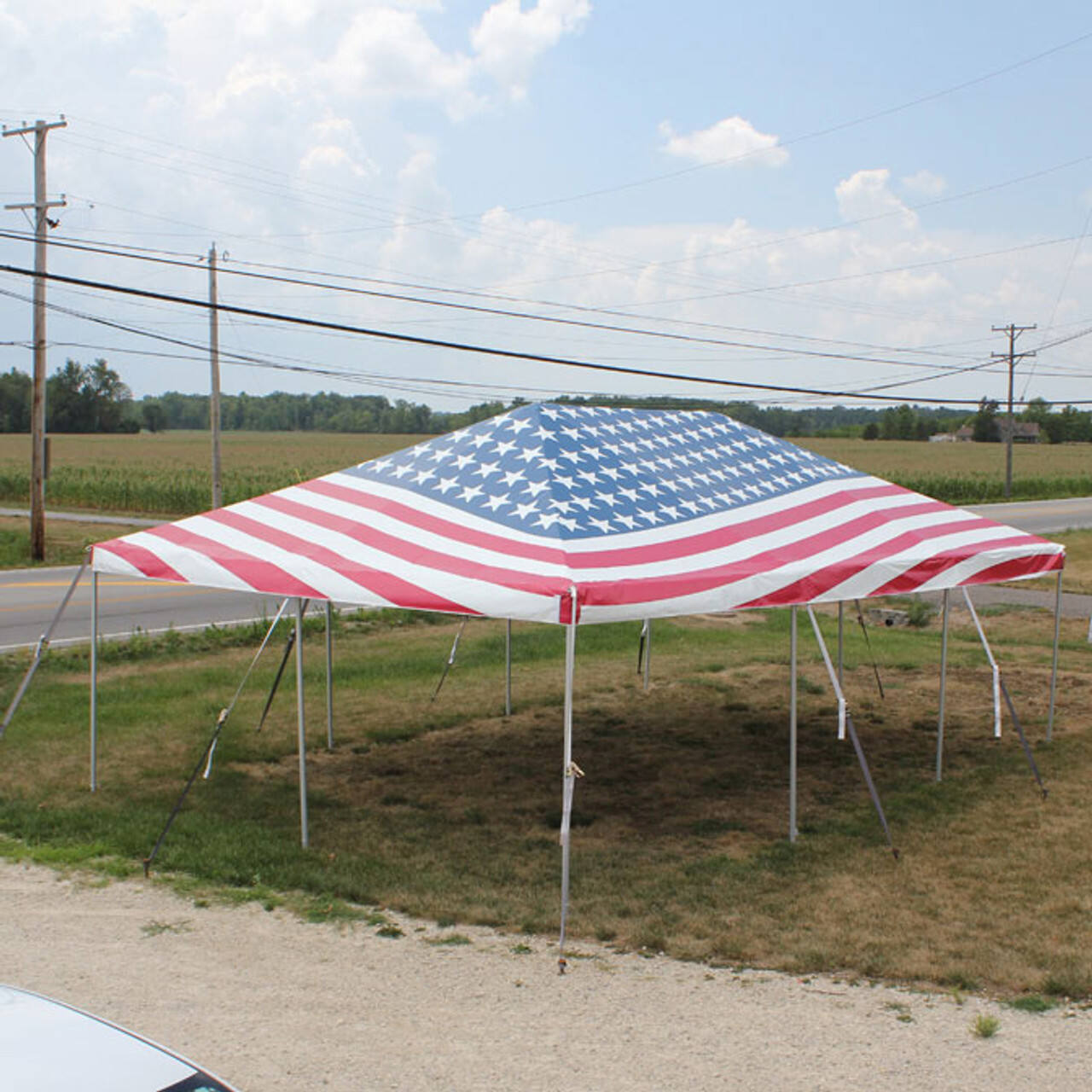

The Classic Series Frame tent is a tent which utilizes a simple frame to support the tent top, maximizing the usable space available underneath the tent. All Classic Series Frame tents use West Coast Style frames and fittings, making them interchangeable with all other frames and fittings in this style. Frame tents need to be staked to the ground or otherwise anchored for maximum stability.
Available size:
Width:8’10’15’20’30’40’
Length:8’-unlimited
| Width | 20 ft. / 6.1m |
| Length | 30 ft. / 9.1m |
| Area | 600 ft² / 55.5 m² |
| Eave Height | 8' / 2.4m |
| Overall Height | 13' / 4.06m |
| Pitch | 5' / 1.5m |
| Complete Weight | 599 Lbs. / 271 Kg. |
| Series / Brand | Classic |
| Class | Frame |
| Center Pole | No |
| Style / Shape | Traditional |
| Expandable | No |
| Custom Printing Available | Yes |
| Fabric Material | PVC Coated Polyester |
| Fabric Material Weight | 16 oz. / yd2 / 540 gsm |
| Fabric Translucency | Blockout |
| Water Repellency | Waterproof |
| Flame Resistant | NFPA-701/CPAI-84/ASTM-D6413/CANULC-S109/DIN4102-B1 |
| UV Resistant | Yes |
| Mold and Mildew Resistant | Yes |
| Frame / Pole Material | Aluminum 6061/T6 |
| Longest Component | 14'4" / 4.4m |
| Persons required for setup | 3-5 |
| Occupancy | 60 Sit Down Dinner - 100 Cathedral Seating |
