Approx. Dimensions
| Width | Length | Height | Capacity |
| 20ft / 6.1m | 20ft / 6.1m | 8ft / 2.4m | 40-67guest |
Available Color
Available Sidewall

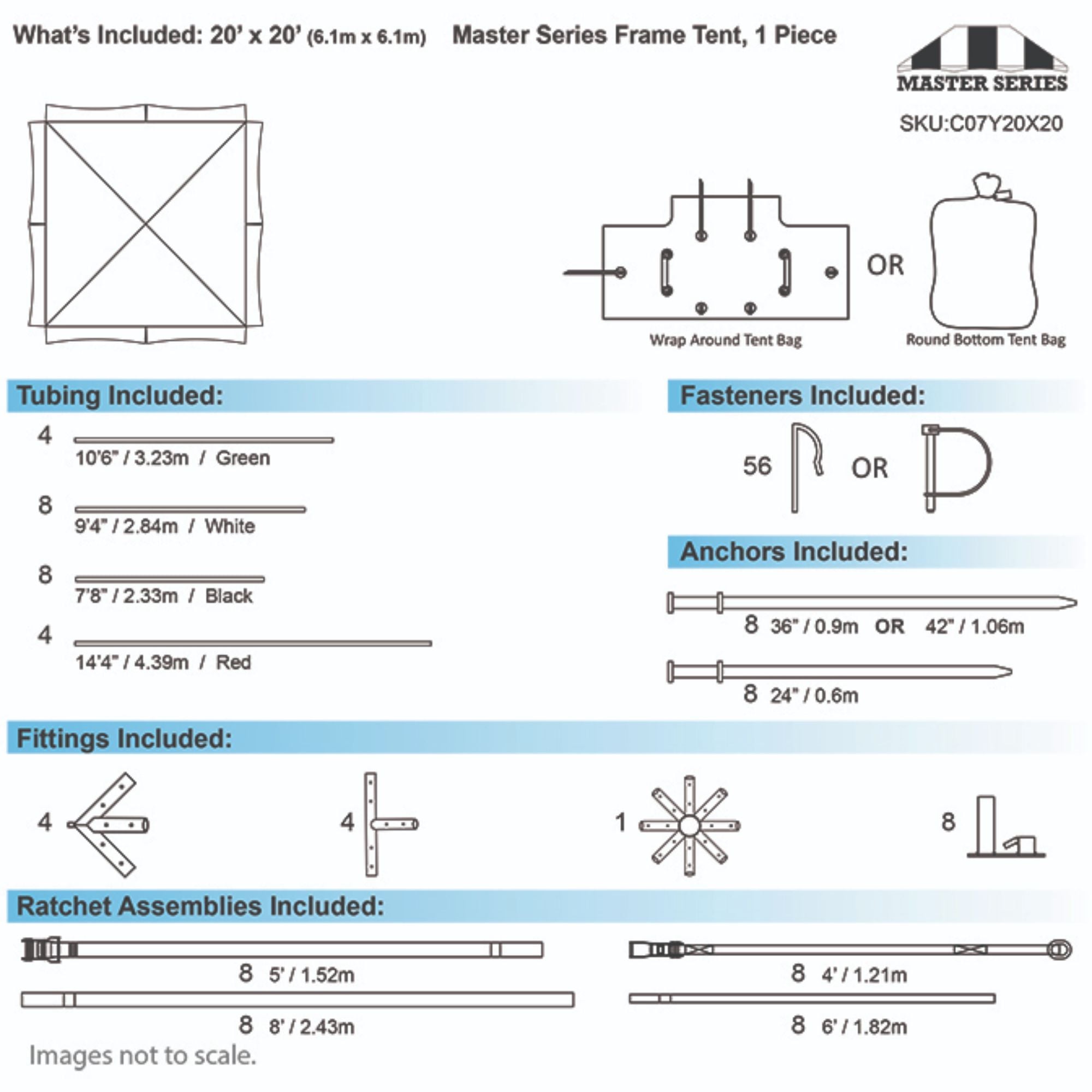

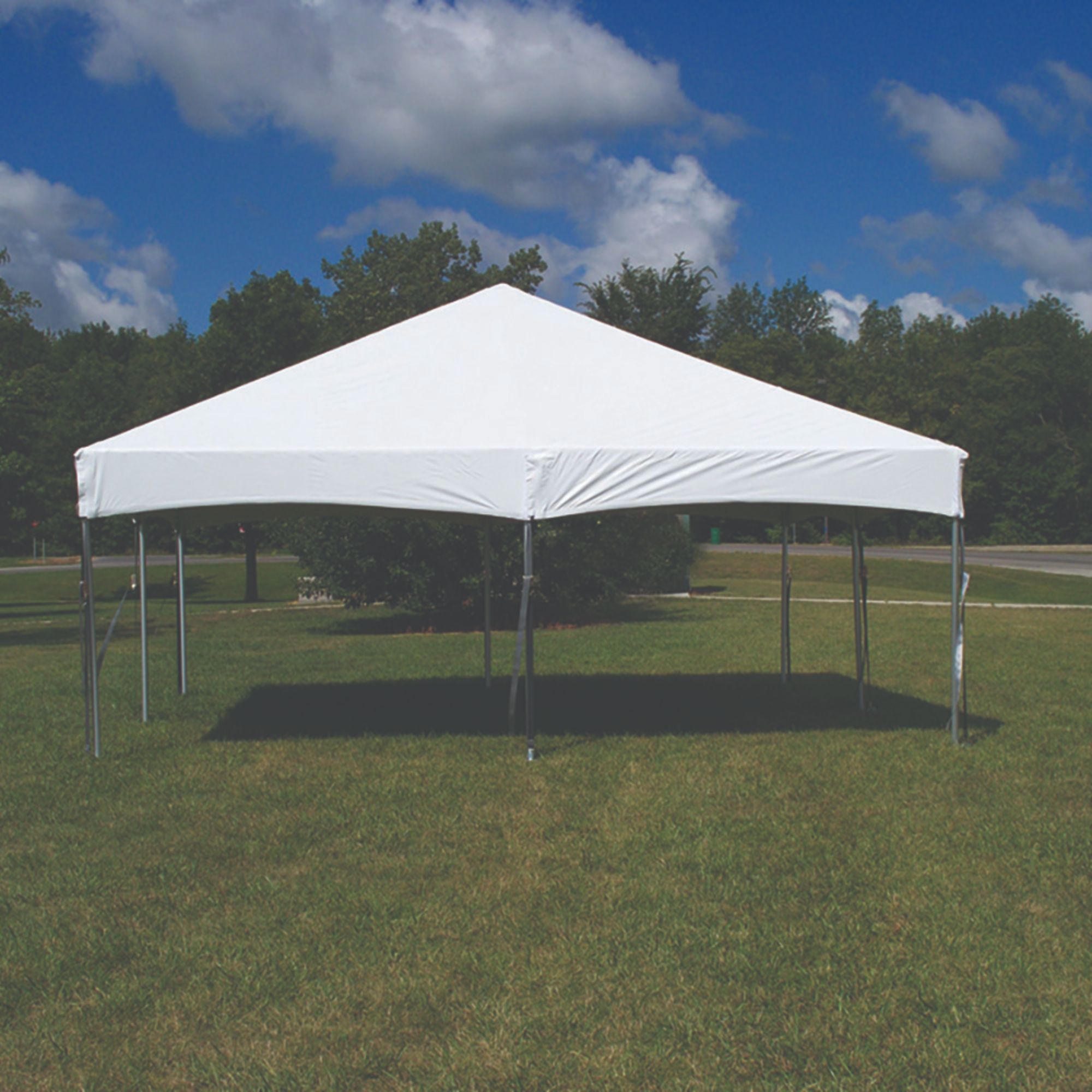

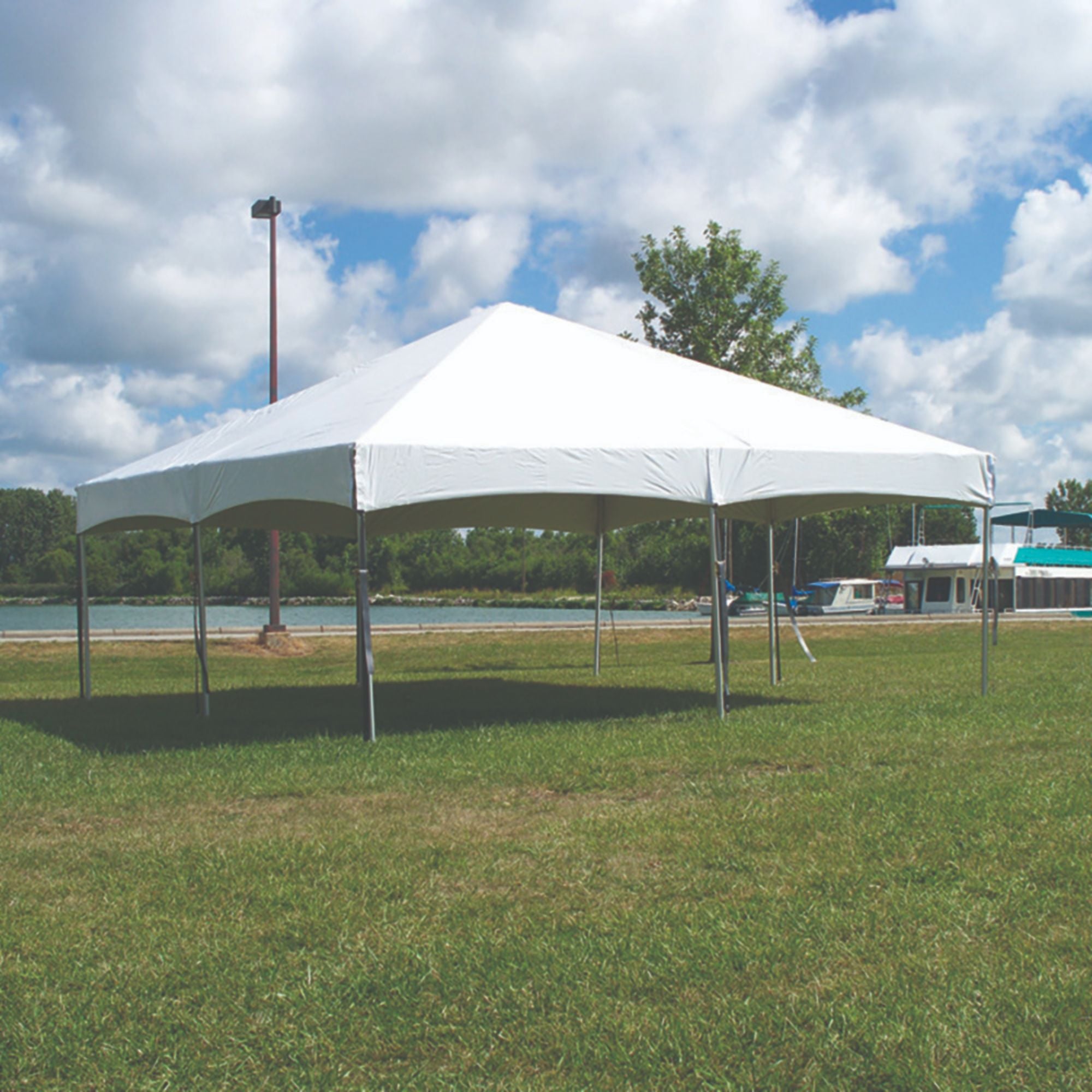

20' X 20' Master Frame Tent / one piece tent top, Complete
The Master Series Frame Tent utilizes the West Coast Style Frame and fittings for compatibility between tents. The design of the Master frame tent is meant to smooth and tighten the traditional look of frame tents by using a tensioned valance, or catenary curve, as opposed to clips or buckles. Which allows the Master Series Frame tent to use less hardware, leading to faster and easier installations.
Available size:
Width: 10' 12' 15’ 20’ 30’ 40’
Length:10’-unlimited
| Width | 20 ft. / 6.1m |
| Length | 20 ft. / 6.1m |
| Area | 400 ft² / 37.2m² |
| Eave Height | 8' / 2.4m |
| Overall Height | 13'/ 4m |
| Pitch | 5' / 1.5m |
| Complete Weight | 543 Lbs. / 246 Kg. |
| Series / Brand | Master |
| Class | Frame |
| Center Pole | No |
| Style / Shape | Traditional |
| Expandable | No |
| Custom Printing Available | Yes |
| Fabric Material | PVC Coated Polyester |
| Fabric Material Weight | 16 oz. / yd2 / 540 gsm |
| Fabric Translucency | Blockout |
| Water Repellency | Waterproof |
| Flame Resistant | NFPA-701/CPAI-84/ASTM-D6413/CANULC-S109/DIN4102-B1 |
| UV Resistant | Yes |
| Mold and Mildew Resistant | Yes |
| Frame / Pole Material | Aluminum 6061/T6 |
| Longest Component | 14'4" / 4.4m |
| Persons required for setup | 2-4 |
| Occupancy | 40 Sit Down Dinner - 67 Cathedral Seating |
